Structural designs undertaken to aid structural engineers with their calculations
From mezzanine floors to fire escapes to timber floor supports [ double triple trimmers] steel beams to lintels pads stones
and loft conversions
although i tend to steer away from these types of project as they can be a real pain in the butt
and always with lots of complications

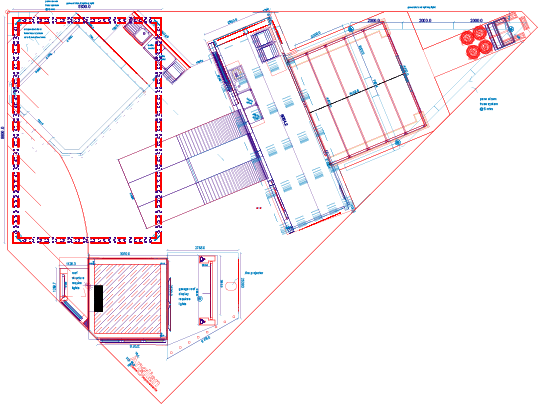

Ideal Home show Earls Court London this show featured Lotus Europa sports car on a brick / block paver curved drive this particular exhibition stand was 150 m2 .We didn’t have enough room to sit the car on the floor so we decided to hang it
to create space and WOW factor

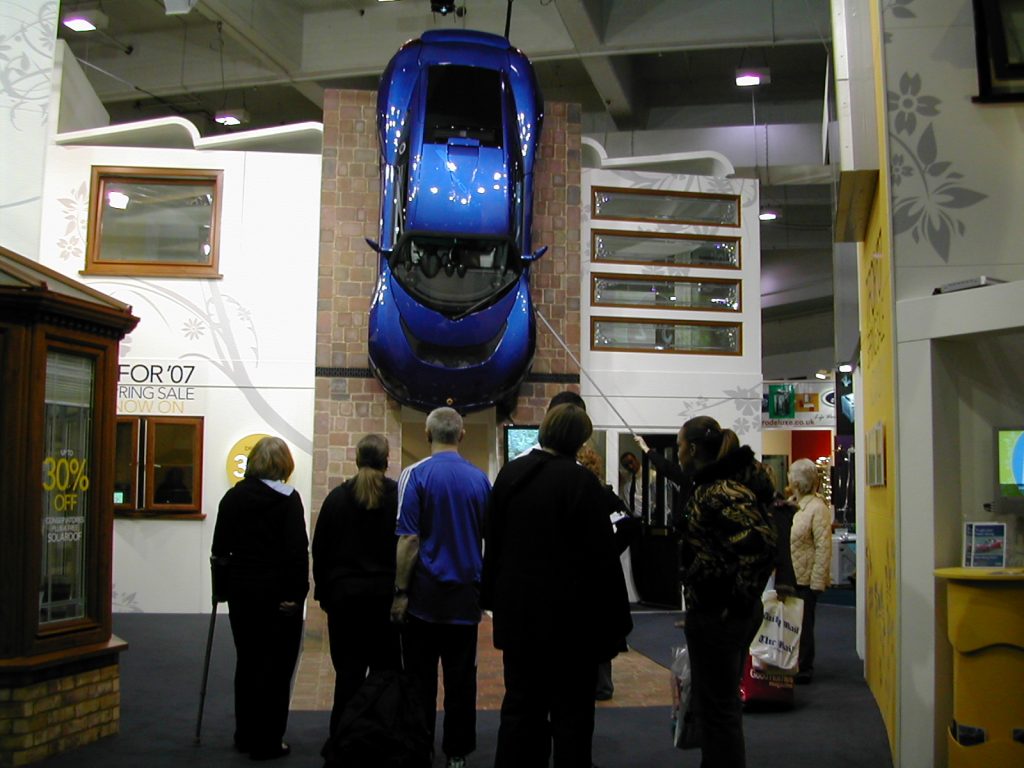

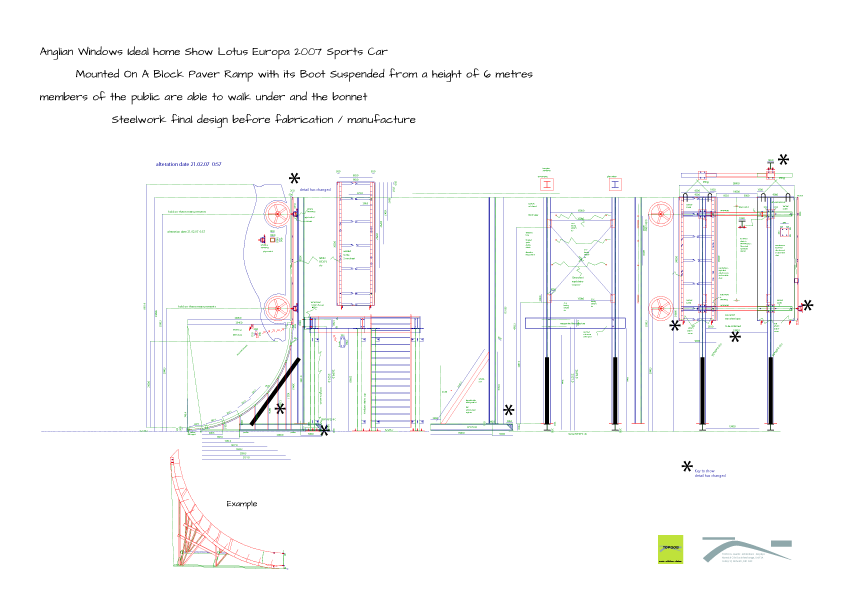

Anglian Windows Ideal home Show Lotus Europa 2007 Sports Car Mounted On A Block Paver Ramp with its Boot Suspended from a height of 6.5 metres
Members of the public are able to walk under the car and touch the bonnet of the car
Steelwork final design before fabrication / manufacture
There were lots of other supporting drawings to support the fabrication as we had to build a whole house around this

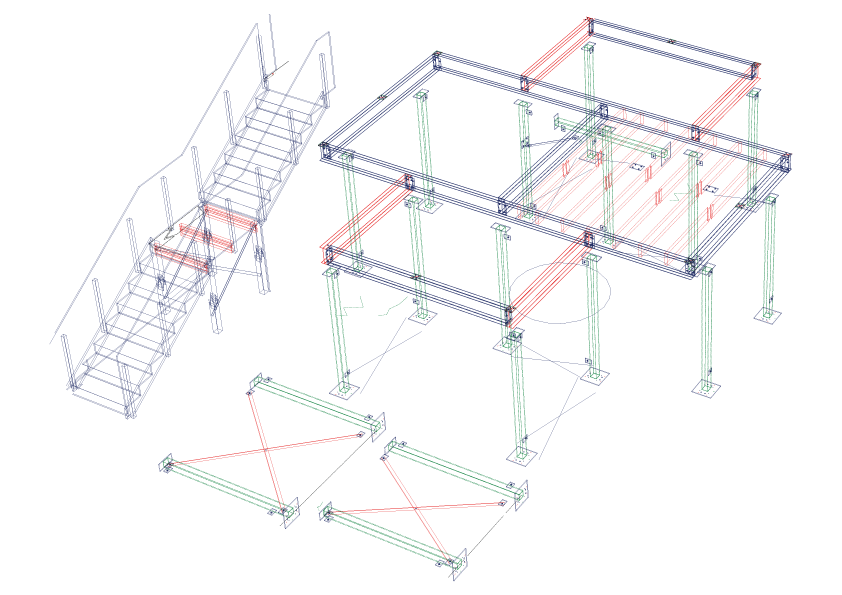

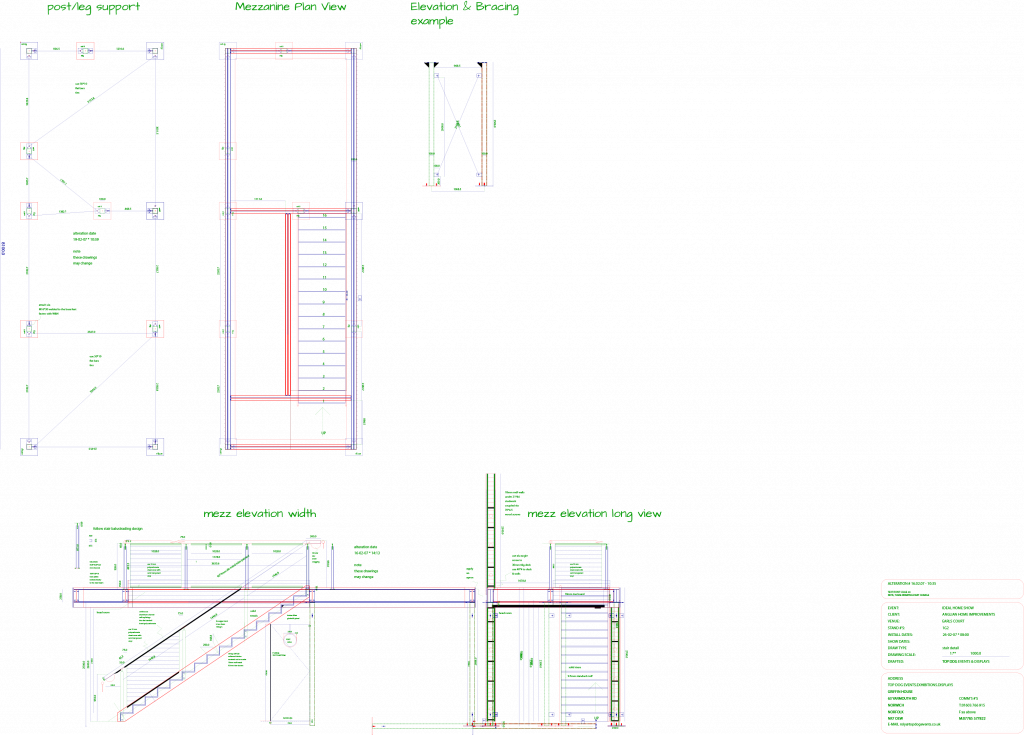

this mezzanine steel detailed drawing manufactured by KP Martin in Kent UK and used then altered for different exhibition shows London & Birmingham then modified to a rectangle for an industrial warehouse as a storage unit
Mezzanine floors as long as they are not connected to a structure of a building are rates exempt

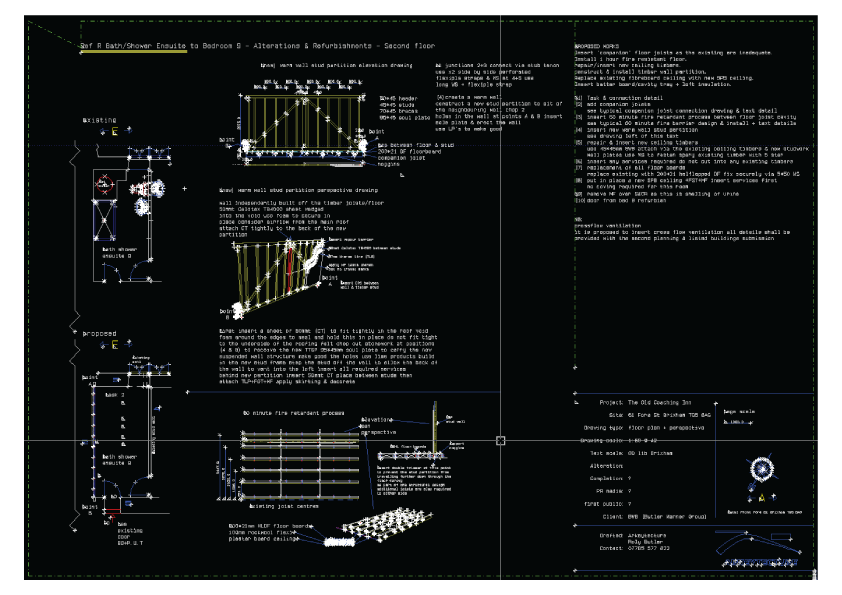

This type of drawing was required by a structural engineer
in order to understand how to strengthen an existing floor and lath and plaster wall without any support in the floor whilst supporting a water 40 gallon water tank
End of Structural webpage
